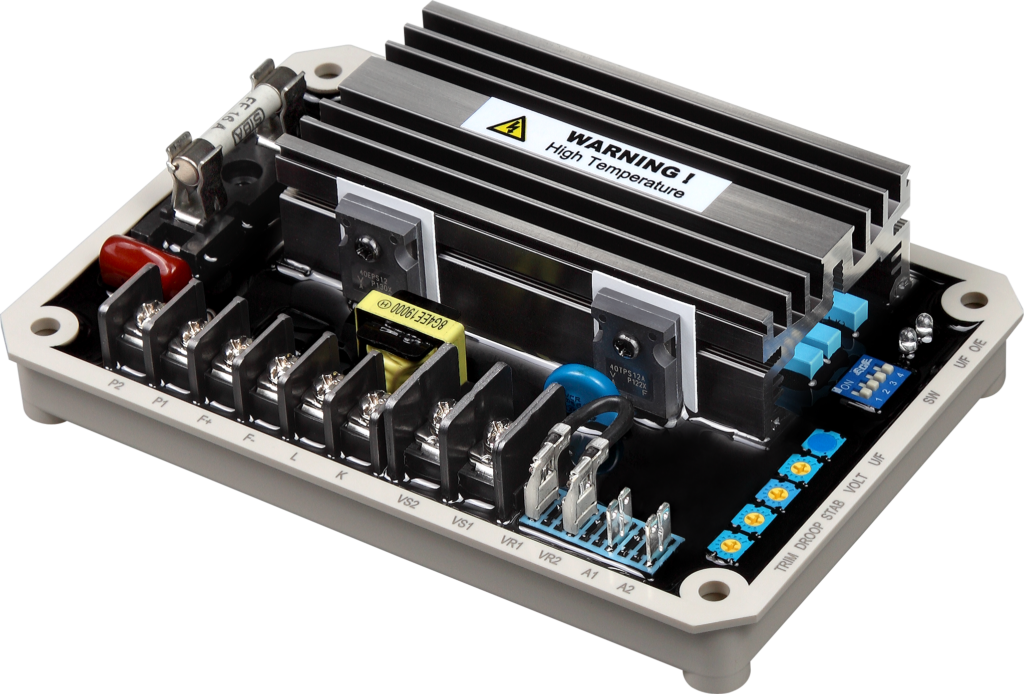

ADVR 16 Generator AVR
Original price was: ₨ 55,000.00.₨ 48,000.00Current price is: ₨ 48,000.00.
Analog Digital 16Amp Voltage Regulator for Parallel Operation
A 16Amp analog-digital AVR designed for parallel operation of generator sets. It is compatible with AVRs from Caterpillar, SIEMENS, Khenkikian, Genaust, KATO, Marelli, BOKUK, ENGGA, and Crompton Greaves. Utilizing a digital circuit for voltage sensing and under-frequency protection, it effectively reduces output voltage fluctuations and prevents under-frequency knee point drift caused by environmental temperature changes.
Features
- Voltage regulation less than +/-0.5%
- Suitable for brushless type generator sensing input 170 to 510 Vac
- Can be used in parallel operation
- 16 Adc current output
- Suitable frequency 50/60 Hz
- Inverse-time over excitation protection
- O/E over excitation protection
- Under frequency protection and soft start voltage ramping
- Load CT current compensation, analog voltage input
- Digital circuit for voltage sensing and under frequency protection
- Effectively minimize the output voltage variations and under frequency knee point drifted affected by temperature changes
Specifications |
|
|---|---|
| Sensing Input |
|
| Power Input |
|
| Excitation Output |
|
| External Voltage Adjustment |
|
| Voltage Regulation |
|
| Build Up Voltage |
|
| Static Power Dissipation |
|
| CT Current Compensation Input |
|
| Analogue Voltage Input |
|
| Under Frequency Protection |
|
| Over Excitation Protection |
|
| Voltage Thermal Drift |
|
AVR Control Functions |
|
|---|---|
| VOLT |
|
| STAB |
|
| U/F |
|
| DROOP |
|
| TRIM |
|
Environment |
|
|---|---|
| Environment |
|
| Storage Temperature |
|
| Relative Humidity |
|
| Vibration |
|
Physical Specifications |
|
|---|---|
| Dimension |
|
| Weight |
|
In stock
ATTENTION!!
1. AVR can be mounted directly on the engine, genset , switchgear, control panel, or any position that will not affect operation. For dimension reference, please see Figure below
2. All voltage readings are to be taken with an average-reading voltmeter Meggers and high-potential test equipment must not be used. Use of such equipment could damage the AVR.
3. Secure all wiring connection. Do not install AVR at a place with high vibrations to prevent loose connections. For safety do not touch the heat sink while in operation.
